Brookhurst handmade clay roof tiles

Brookhurst
Handmade Clay Roof Tiles

Perfect emulation of the tradition

Ideal for larger multiple projects where time and value matters

The collection9 standard colors in 7 textures

Please kindly remember that the vibrancy and saturation of colors on this page are displayed due to your display preferences. Actual colors may vary.

Delivery information

Standard Stock Items are normally available for delivery within 3-4 days. We endeavour to dispatch samples to customers within 1-2 days, Sahtas also welcome customers to come and view our Genuine Hand Made tiles on a larger display format at: Galleon Wharf, Old Wolverton Road, Milton Keynes MK12 5NL where they are encouraged to select their own collection of samples and take them with them when they leave.

Deluxe Custom Order Items are special order only with a delivery lead time of 8-10 weeks from receipt of official order and delivery of samples of these tiles may take 1-2 weeks.

alt text
Brown

More matured, but not too dark

alt text

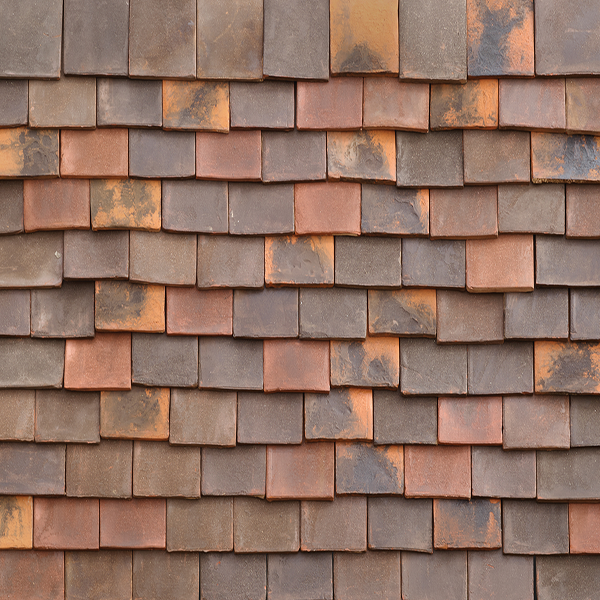

Chartridge

Dark hues with a strong orange base

alt text
Classic

Darker, more established feel

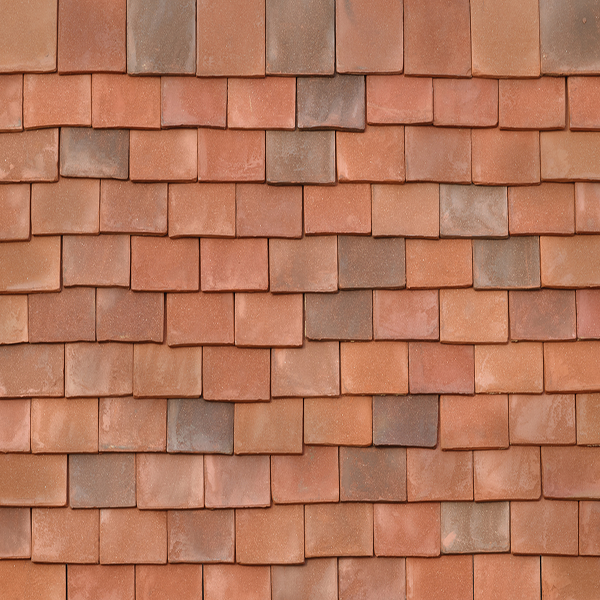

Brookhurst Multi Coloured Clay Roof Tile
Multi

The flagship blend with traditional firing methods

Brookhurst Orange Clay Roof Tile
Orange

Likened to Sussex Wealden clay

Brookhurst Red Clay Roof Tile

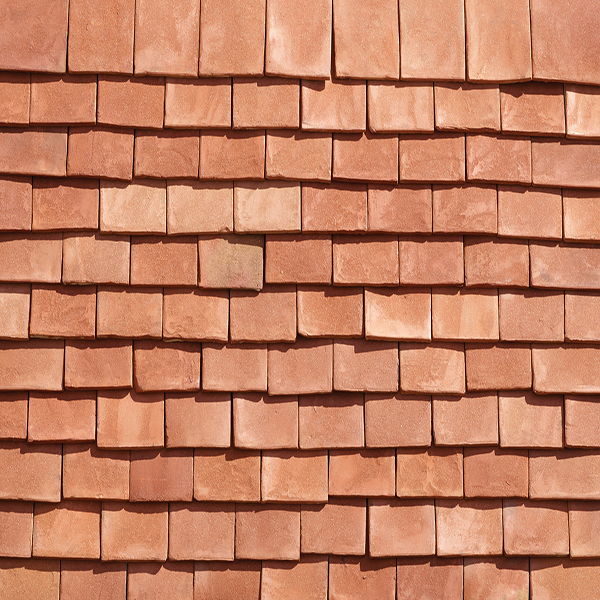

Red

Single colour shaded by the fire

Brookhurst Restoration Clay Roof Tile

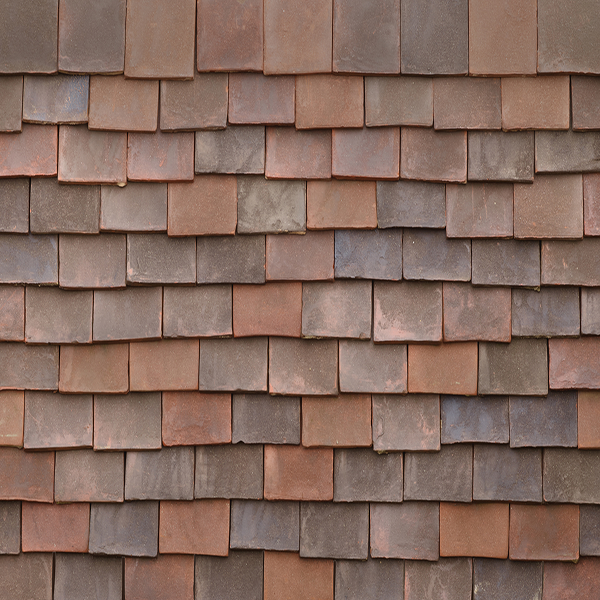

Restoration

A blend of blacks and browns

QUALITY CERTIFICATION

Sahtas tiles in this collection are independently tested by LUCIDEON® (formerly CERAM) and have passed:

BSEN 538:1994 BSEN 539-2:2005 BSEN 539-1:2006
for strength * for resistance to frost damage for impermeability to water

* = In accordance with BSEN 1304:2005 clay roofing tiles and fittings product definitions and specifications.

INSTALLATION GUIDE

Click to view or download the installation guide for Sahtas clay roof tiles

Sahtas Brookhurst handmade clay roof tiles are made by applying the granular sand mix to the natural clay surface.

Owing to the softer granulation, these tiles will weather and mellow rapidly, aging and giving the impact of a matured roof in a very short time.

Sahtas Brookhurst handmade clay roof tiles perfectly emulate our genuine hand made tiles, making these ideal for larger multiple projects where costing has to be reduced.

Offering great value with high performance specs, Sahtas Brookhurst roof tiles are competitively priced.

The slight variations in size, camber and texture are the distinctive features of this collection.

Due to the special workflow of Sahtas, combining traditional techniques with the latest surface, pigment, aging, shade and structural researches, unlimited color, shade and texture combinations are available.

30-Year Guarantee Clay Roof Tile
30-YEAR GUARANTEE

Sahtas offers a 30-year manufacturers back guarantee for the Sahtas range of hand-made clay roof tiles, which commences from the date of product supply to site.


Technical specifications for plain tiles (Click to view)
Description Roof Vertical
Minimum roof pitch 40 ° 75 °
Headlap (minimum) 65 mm 38 mm
Batten spacing at maximum gauge 75 mm 114 mm
Size of tile 265 × 165 mm
Covering capacity 60 tiles/m² 53 tiles/m²
Cover width 165 mm
Weight as laid 70 kg/m² 61.8 kg/m²
Battens/m² 10 m 8.7 m
Batten size 38 × 25 mm
Nail size for tiles 38 × 3.35 mm
Nail type for tiles Alloy clout
Packing sizes and weights for plain tiles (Click to view)
Description Nominal size (mm) Quantity Unit Weight (kg) Pack Weight (kg)
Plain Tile 265 × 165 1,120 1.16 1,330
Eave 215 × 165 1,500 0.18 1,350
Gable 265 × 248 700 1.86 1,330
Universal Valley 280 × 280 520 1.85 990
Bonnet Hip 280 × 280 560 1.75 1,010
Half Round Ridge 300 long 220 2.91 670
Hogsback Ridge 300 long 370 2.86 1,090
Internal Angle 265 long 900 1.84 1,690
External Angle 265 long 900 1.84 1,690
Third Round Ridge 270 × 250 760 1.51 1,180
Club Tile 265 × 165 1,120 1.16 1,330
Arrowhead Tile 265 × 165 1,120 1.16 1,330
Bullnose Tile 1,120 1,120 1.16 1,330
Technical specifications for peg tiles (Click to view)

Sahtas Peg Tiles are manufactured in a similar way to the plain tiles except they have no nibs, are slightly smaller and flatter, and have large square nail/peg holes. The name “Peg Tile” is derived from its method of fixing as originally (as far back as Roman times) these tiles would have been hung with wooden pegs pushed through the peg hole and hooked over the battens.

Nowadays, they are often nailed into the battens for added security or a larger diameter alloy clout nail is used to hook over the batten. We normally keep stocks of Multi, Restoration, Orange, Red, Classic Weathered and Classic Brown Pegs and the associated fittings; but they are available in any colour to order.

Description Roof Vertical
Minimum roof pitch 40 ° 75 °
Headlap (minimum) 65 mm 38 mm
Batten spacing at maximum gauge 95 mm 108 mm
Size of tile 255 × 155 mm
Covering capacity 70.0 tiles/m² 60.0 tiles/m²
Cover width 155 mm
Weight as laid 84.7 kg/m² 49.8 kg/m²
Battens/m² 10.6 m 9.3 m
Batten size 38 × 25 mm
Nail size for tiles - Fixing 40 × 3.35 mm
Nail type for tiles - Fixing Alloy clout
Nail size for tiles - Hooking 40 × 4.5 mm ---
Packing sizes and weights for peg tiles (Click to view)
Description Nominal size (mm) Quantity Unit Weight (kg) Pack Weight (kg)
Peg Tile 255 × 155 1,540 0.83 1,310
Eave 200 × 155 2,050 0.65 1,360
Gable 265 × 248 960 1.30 1,280
Universal Valley 280 × 280 520 1.85 990
Bonnet Hip 280 × 280 560 1.75 1,010
Half Round Ridge 300 long 220 2.91 670
Hogsback Ridge 300 long 370 2.86 1,090
Internal Angle 265 long 900 1.84 1,690
External Angle 265 long 900 1.84 1,690
Third Round Ridge 270 × 250 760 1.51 1,180
Determination of Flexural Strength (Click to view)

Determination of Flexural Strength

BS EN 538: 1994: Clay Roofing Tiles for Discontinuous Laying

Span: 176 mm
D10 Does the sample comply with the BSEN1304: 2005 Clause 4.4.2? Yes
Opinions and interpretations expressed herein are outside the scope of UKAS Accreditation.

No. Flexural Strength kN
1 1.56
2 1.86
3 1.89
4 1.61
5 1.89
6 1.65
7 1.72
8 1.68
9 1.83
10 1.89
Mean 1.76
Determination of Impermeability of Clay Roofing Tiles (Click to view)

Determination of Impermeability of Clay Roofing Tiles

BSEN 539-1:2005 Method 2 & BSEN 1304:2005

The samples tested comply with Category 1
If 20 hours is indicated giving a coefficient of 0.00 this is equivalent to no drops of water noted throughout the 20 hour time period of the test. It is stated within clause 4.4.1 of BSEN 1304 that tiles classified as Category 1 shall have a mean impermeability coefficient after testing of 0.8 or less, and all individual results shall be 0.85 or less Catergory 2 shall have a mean impermeability coefficient after testing of 0.925 or less, and all individual results shall be 0.95 or less. Tiles or fittings for roofs classified in Category 2 shall only be used with watertight roofing underfelt.
No Time to FirstDrop (hr/min) Impermeability Coefficient
1 20 0
2 20 0
3 20 0
4 20 0
5 20 0
6 20 0
7 20 0
8 20 0
9 20 0
10 20 0
Mean 20 0.0
Determination of Frost Resistance (Click to view)

CLAY ROOFING TILES – TEST FOR FROST RESISTANCE FOR DISCONTINUOUS LAYING DETERMINATION OF PHYSICAL CHARACTERISTICS

BS EN 539 Part 2 Test for Frost Resistance 2013

TEST PROCEDURE

Saturation of Tiles
The samples were dried at 110°C, weighed and examined for existing defects, then progressively immersed in water over a period of 5 days. After the tiles are fully immersed they are then left to soak for a further 72 hours, then they are removed and weighed. The water absorption results are given in Table 2.

Freeze/Thaw Tests
The tiles were tested according to the method described in BS EN 539-2: 2013 European Single Test Method using the apparatus illustrated in that standard. The tiles were examined at 30, 90 and 150 cycles.

Table 1 - Interpretation of the Result
Front Back
1 Pit - -
2 Hair Crack - -
3 Nascent Crack - -
4 Surface Crack X Xa
5 Surface Damage (chip, peeling, flaking) X Xa
6 Structural X X
7 Loss of Interlocking ribs X X
8 Break X X
9 Delamination X X
10 Loss of all Nibs X
X = unacceptable / - = acceptable
Note: the degree of damaging can be demonstrated through a change in the impermeability and/or flexural strength of the product
a Where the degree of damage indicates that the functional performance of the product would not be assured.

Table 2

Tile No: % Water Absorption Frost Damage
30 Cycles (Front) 30 Cycles (Back) 90 Cycles (Front) 90 Cycles (Back) 150 Cycles (Front) 150 Cycles (Back)
1 2.5 No Damage No Damage No Damage No Damage No Damage No Damage
2 5.7 No Damage No Damage No Damage No Damage No Damage No Damage
3 5.3 No Damage No Damage No Damage No Damage No Damage No Damage
4 5.1 No Damage No Damage No Damage No Damage No Damage No Damage
5 7.4 No Damage No Damage No Damage No Damage No Damage No Damage
6 6.7 No Damage No Damage No Damage No Damage No Damage No Damage
Mean 5.5
Determination of Compressive Strength Clay Facing Bricks (Click to view)

Determination of Compressive Strength

BS EN 772-1: 2011 (By Surface Grinding)

Brick Length Brick Width Frog Length Frog Width Load Compressive Strength
No. mm mm mm mm kN N/mm²
1 215.0 102.8 157 48 580.4 39.9
2 214.3 102.0 160 46 701.3 48.4
3 214.5 101.8 156 48 633.4 43.7
4 215.5 101.3 158 48 574.2 40.3
5 211.0 100.8 157 49 569.5 42.0
6 208.5 102.0 157 48 681 49.6
7 206.5 101.5 159 47 565 41.9
8 208.8 102.0 158 47 548 39.5
9 212.5 102.5 157 48 864 60.7
10 213.0 102.8 159 49 759 53.8
Mean 212.0 102.0 158 48 647.6 46.0
Determination of Dimensions Clay Facing Bricks (Click to view)

Determination of Dimensions

BS EN 772-16: 2011

Length Width Hieght
No. mm mm mm
1 215.0 102.8 62.3
2 214.3 102.0 63.5
3 214.5 101.8 65.5
4 215.5 101.3 63.3
5 211.0 100.8 63.8
6 208.5 102.0 64.5
7 206.5 101.5 64.3
8 208.8 102.0 63.8
9 212.5 102.5 63.0
10 213.0 102.8 64.5
Mean 212.0 102.0 64.0
Determination of Net & Gross Dry Density of Masonry Units (Click to view)

Determination of Net & Gross Dry Density of Masonry Units

BS EN 772-13:2000

Net Dry Density Gross Dry Density
No. kg/m³ kg/m³
1 1800 1630
2 1780 1510
3 1740 1430
4 1740 1450
5 1850 1650
6 1900 1590
7 1890 1560
8 1940 1620
9 1820 1630
10 1800 1550
Mean 1830 1560
Determination of Soluble Salts Clay Facing Bricks (Click to view)

Determination of Soluble Salts Clay Facing Bricks

BS EN 772-13:2000

Result(s) Units
Active Magnesium M g 2 + % <0.005
Active Sodium N a + % <0.005
Active Potassium K + % <0.005
Sodium + Potassium Na+ + K+ % <0.01
Water Soluble Magnesium M g 2 + % <0.01
Classification Category     S2
Sulphate, Water Soluble S O 4 % 0.09
Mean of Duplicate Determinations     No
Sample Basis     Dried 110 deg C
UKAS Accredited     Yes
Determination of Water Absorption Clay Facing Bricks (Click to view)

Determination of Water Absorption Clay Facing Bricks

BS EN 772-21: 2011

Dry Weight Saturated Weight After 24 Hr Soak WaterAbsorption
No. g g %
1 2219 2505 13
2 2101 2384 13
3 2046 2368 16
4 2009 2317 15
5 2214 2462 11
6 2209 2433 10
7 2092 2303 10
8 2183 2397 10
9 2231 2521 13
10 2200 2490 13
Mean 2150 2418 12
Determination of Freeze/Thaw Resistance of Clay Masonary Units (Click to view)

Determination of Freeze/Thaw Resistance of Clay Masonary Units

(Tested in Accordance with DD/CEN/TS 772:22: 2006)

Categories/Types of Damage Type
None 0
Crater (e.g. lime-burst) 1
Hair Crack ≤0.2mm 2
Minor Crack 3
Surface Crack >0.2mm 4
Through Crack 5
Chipping, Peeling, Scaling 6
Fracture 7
Spalling, Delamination 8
