Handmade Traditional Roof Tiles
For the world’s high end projects,
the choice of top architectural practices, renovation and restoration companies

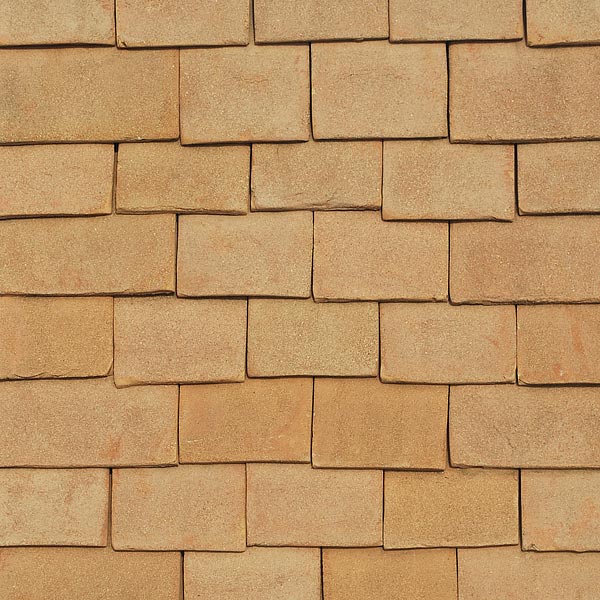

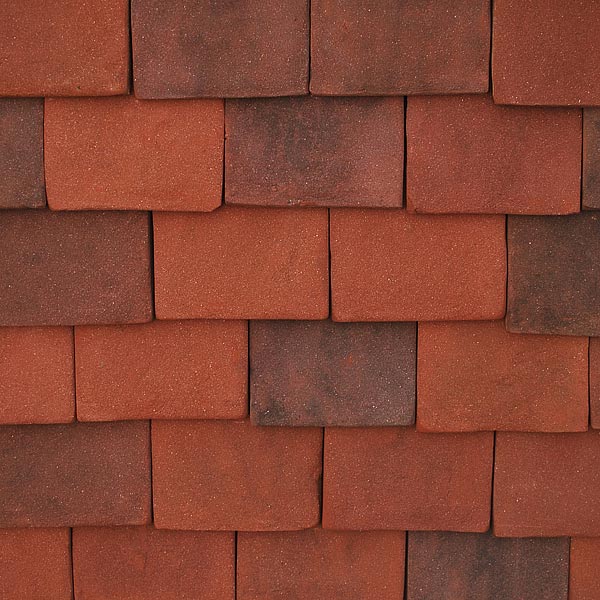

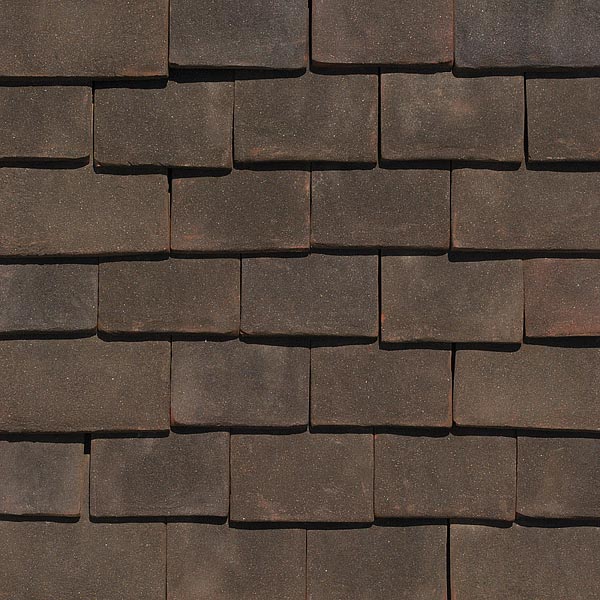

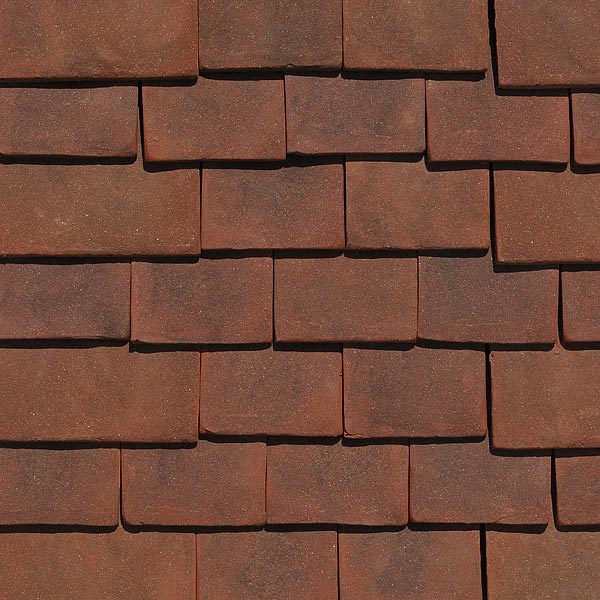

The collection6 colors in 7 textures
Please kindly remember that the vibrancy and saturation of colors on this page are displayed due to your display preferences. Actual colors may vary.
QUALITY CERTIFICATION
Sahtas tiles in this collection are independently tested by CERAM® and have passed:
* = In accordance with BSEN 1304:2005 clay roofing tiles and fittings product definitions and specifications.
INSTALLATION GUIDE
Click to view or download the installation guide for Sahtas clay roof tiles
Handmaking clay tiles in traditional style is the core competency of Sahtas and the collection is one of the few of its class, available on the market today.
Sahtas handmade traditional roof tiles not only look but also make feel individual and stylish, recreating the sense of bygone years.
Tiles of this collection precisely reproduce the old traditional roof tiles, perfectly matching to the listed building restorations or new projects.
The slight variations in size, camber and texture are the distinctive features of this collection.
Due to the special workflow of Sahtas, combining traditional techniques with the latest surface, pigment, aging, shade and structural researches, unlimited color, shade and texture combinations are available.
30-YEAR GUARANTEE
Sahtas offers a 30-year manufacturers back guarantee for the Sahtas range of hand-made clay roof tiles, which commences from the date of product supply to site.
| Description | Roof | Vertical |
|---|---|---|
| Minimum roof pitch | 40 ° | 75 ° |
| Headlap (minimum) | 65 mm | 38 mm |
| Batten spacing at maximum gauge | 75 mm | 114 mm |
| Size of tile | 265 × 165 mm | |
| Covering capacity | 60 tiles/m² | 53 tiles/m² |
| Cover width | 165 mm | |
| Weight as laid | 70 kg/m² | 61.8 kg/m² |
| Battens/m² | 10 m | 8.7 m |
| Batten size | 38 × 25 mm | |
| Nail size for tiles | 38 × 3.35 mm | |
| Nail type for tiles | Alloy clout | |
| Description | Nominal size (mm) | Quantity | Unit Weight (kg) | Pack Weight (kg) |
|---|---|---|---|---|
| Plain Tile | 265 × 165 | 1,120 | 1.16 | 1,330 |
| Eave | 215 × 165 | 1,500 | 0.18 | 1,350 |
| Gable | 265 × 248 | 700 | 1.86 | 1,330 |
| Universal Valley | 280 × 280 | 520 | 1.85 | 990 |
| Bonnet Hip | 280 × 280 | 560 | 1.75 | 1,010 |
| Half Round Ridge | 300 long | 220 | 2.91 | 670 |
| Hogsback Ridge | 300 long | 370 | 2.86 | 1,090 |
| Internal Angle | 265 long | 900 | 1.84 | 1,690 |
| External Angle | 265 long | 900 | 1.84 | 1,690 |
| Third Round Ridge | 270 × 250 | 760 | 1.51 | 1,180 |
| Club Tile | 265 × 165 | 1,120 | 1.16 | 1,330 |
| Arrowhead Tile | 265 × 165 | 1,120 | 1.16 | 1,330 |
| Bullnose Tile | 1,120 | 1,120 | 1.16 | 1,330 |
Sahtas Peg Tiles are manufactured in a similar way to the plain tiles except they have no nibs, are slightly smaller and flatter, and have large square nail/peg holes. The name “Peg Tile” is derived from its method of fixing as originally (as far back as Roman times) these tiles would have been hung with wooden pegs pushed through the peg hole and hooked over the battens.
Nowadays, they are often nailed into the battens for added security or a larger diameter alloy clout nail is used to hook over the batten. We normally keep stocks of Multi, Restoration, Orange, Red, Classic Weathered and Classic Brown Pegs and the associated fittings; but they are available in any colour to order.
| Description | Roof | Vertical |
|---|---|---|
| Minimum roof pitch | 40 ° | 75 ° |
| Headlap (minimum) | 65 mm | 38 mm |
| Batten spacing at maximum gauge | 95 mm | 108 mm |
| Size of tile | 255 × 155 mm | |
| Covering capacity | 70.0 tiles/m² | 60.0 tiles/m² |
| Cover width | 155 mm | |
| Weight as laid | 84.7 kg/m² | 49.8 kg/m² |
| Battens/m² | 10.6 m | 9.3 m |
| Batten size | 38 × 25 mm | |
| Nail size for tiles - Fixing | 40 × 3.35 mm | |
| Nail type for tiles - Fixing | Alloy clout | |
| Nail size for tiles - Hooking | 40 × 4.5 mm | --- |
| Description | Nominal size (mm) | Quantity | Unit Weight (kg) | Pack Weight (kg) |
|---|---|---|---|---|
| Peg Tile | 255 × 155 | 1,540 | 0.83 | 1,310 |
| Eave | 200 × 155 | 2,050 | 0.65 | 1,360 |
| Gable | 265 × 248 | 960 | 1.30 | 1,280 |
| Universal Valley | 280 × 280 | 520 | 1.85 | 990 |
| Bonnet Hip | 280 × 280 | 560 | 1.75 | 1,010 |
| Half Round Ridge | 300 long | 220 | 2.91 | 670 |
| Hogsback Ridge | 300 long | 370 | 2.86 | 1,090 |
| Internal Angle | 265 long | 900 | 1.84 | 1,690 |
| External Angle | 265 long | 900 | 1.84 | 1,690 |
| Third Round Ridge | 270 × 250 | 760 | 1.51 | 1,180 |
